SPECS

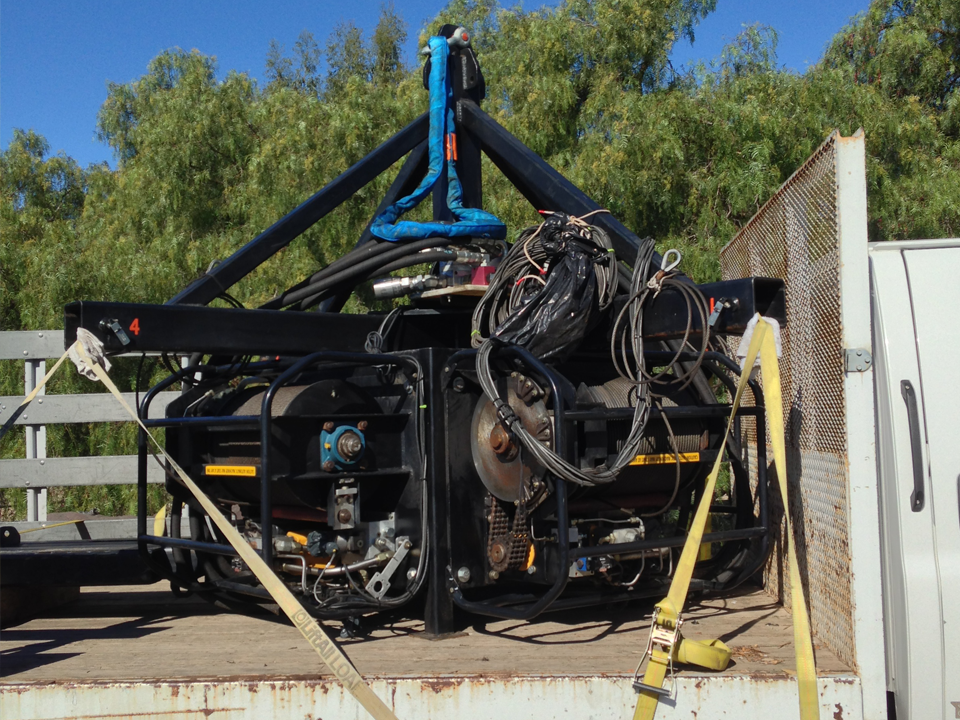

NAC Servo Winches
Capacity – 2500 Lbs single line pull

Speed – Up to 13 ft/sec maximum

Travel – Up to 100’ of usable travel

Cable – 3/8” 7×19 wire rope

Configuration-
Winches can be

• Bolted to the floor
• Rigged to the ceiling if rated for the load

Installed in an NAC frame and hung from a 250 ton crane

Power Requirements – 480 Volt 3 phase with 200 amps per leg

Safety – When activated the E-stop simultaneously applies the disc brake and deenergizes the winch motor valve which removes the hydraulic power

Transportation – The system weighs 27,000 Lbs and takes 1 48’ flat bed truck
