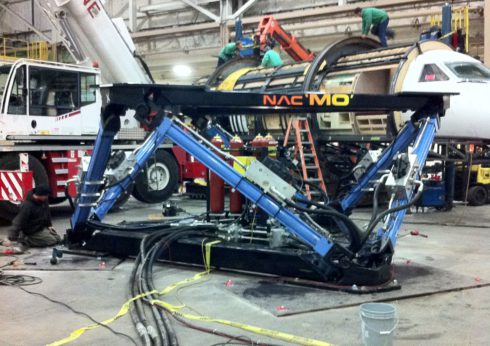

SPECS

Capacity*- max gross weight 16,000 lbs
With rotator 10,000 lbs

Maximum angle is + or – 25 degrees

Vertical heights (all measurements are without the rotator) Lowest height (base turned off) 52”

Mid position (flying position) 73”
Highest position (no angle) 94”

With rotator and frame add 19” to above numbers

Cylinder speed 18”/second .5 of a G acceleration

Footprint of the bottom triangle 10’x10’x10’

Motion base best mounted to 6” reinforced concrete with (18) 3⁄4” taper bolts Consult NAC about any flooring issues

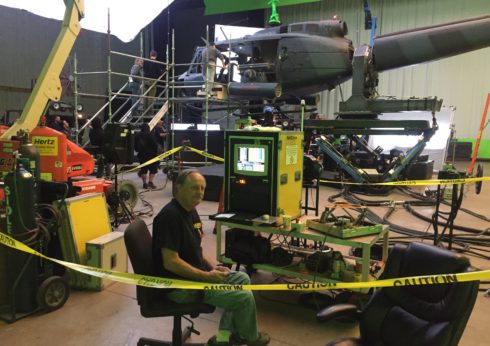

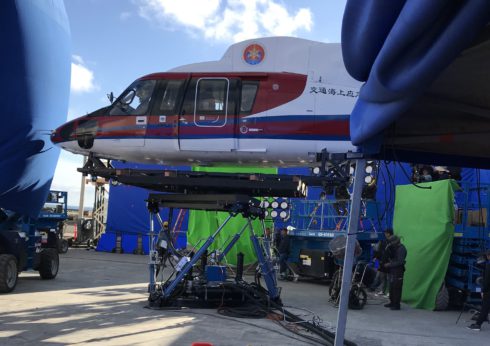

We have decking for sets and mounts for cars and helicopters

The pump is set up outside for noise reduction

The power requirements for hydraulic pump are 480 volts 3 phase 200 amps a leg

35,000 Total shipping weight with 1 @ 48” truck

The computer is 50’ away from base

*The size of the prop or set can affect the maximum capacity.
